衣櫥拉籃｜座式緩衝滑軌
建議載重：40kg
加入詢問車
產品說明
產品說明
- 座式緩衝滑軌
- 碳鋼烤鐵灰
- 高低兩款
產品介紹簡介
堅固耐用衣櫥專用拉籃~
為滿足需求開發高低兩款~

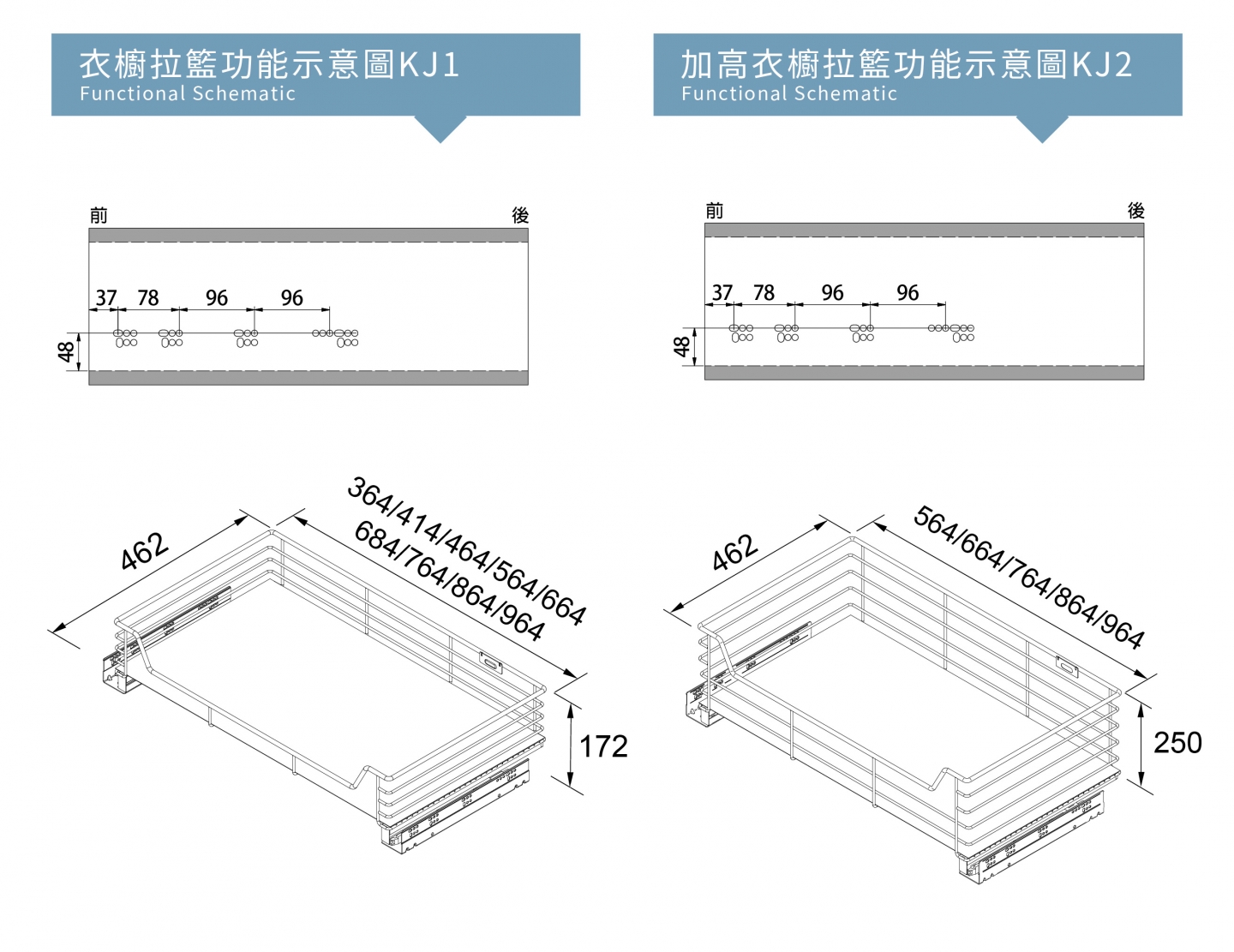

示意圖
衣櫥拉籃規格
碳鋼烤鐵灰
表格可左右移動瀏覽
| 型號 | 高X寬X深(mm) | 適用櫃體 | 組件 |
| 5400KJ1 0103KF1040JDOTK |
172x364x462 | 400 | KK3901A000x1 KF1602A0MCx1 |
| 5450KJ1 0103KF1045JDOTK |
172x414x462 | 450 | KK3901A000x1 KF1603A0MCx1 |
| 5500KJ1 0103KF1050JDOTK |
172x464x462 | 500 | KK3901A000x1 KF1604A0MCx1 |
| 5600KJ1 0103KF1060JDOTK |
172x564x462 | 600 | KK3901A000x1 KF1605A0MCx1 |
| 5700KJ1 0103KF1070JDOTK |
172x664x462 | 700 | KK3901A000x1 KF1606A0MCx1 |
| 5720KJ1 0103KF1072JDOTK |
172x684x462 | 720 | KK3901A000x1 KF1607A0MCx1 |
| 5800KJ1 0103KF1080GCOTK |
172x684x462 | 800 | KK3901A000x1 KF1601A0MCx1 |
| 5900KJ1 0103KF1080JDOTK |
172x764x462 | 900 | KK3901A000x1 KF1608A0MCx1 |
| 5100KJ1 0103KF1100JDOTK |
172x964x462 | 1000 | KK3901A000x1 KF1609A0MCx1 |
加高衣櫥拉籃規格
碳鋼烤鐵灰
表格可左右移動瀏覽
| 型號 | 高X寬X深(mm) | 適用櫃體 | 組件 |
| 5600KJ2 0103KF8060JDOTK |
250x564x462 | 600 | KK3901A000x1 KF8560A0MCx1 |
| 5700KJ2 0103KF8070JDOTK |
250x664x462 | 700 | KK3901A000x1 KF8570A0MCx1 |
| 5800KJ2 0103KF8080JDOTK |
250x764x462 | 800 | KK3901A000x1 KF8580A0MCx1 |
| 5900KJ2 0103KF8090JDOTK |
250x864x462 | 900 | KK3901A000x1 KF8590A0MCx1 |
| 5100KJ2 0103KF8100JDOTK |
250x964x462 | 1000 | KK3901A000x1 KF8599A0MCx1 |
組件
表格可左右移動瀏覽
| 四邊籃 | 碳鋼烤鐵灰 (不含滑軌/此為空籃本體實際尺寸) | ||
 |
型號 | 高x寬x深(mm) | 適用櫃體 |
| KF1602A0MC | 132x300x462 | 400 | |
| KF1603A0MC | 132x350x462 | 450 | |
| KF1604A0MC | 132x400x462 | 500 | |
| KF1605A0MC | 132x500x462 | 600 | |
| KF1606A0MC | 132x600x462 | 700 | |
| KF1607A0MC | 132x620x462 | 720 | |
| KF1601A0MC | 132x700x462 | 800 | |
| KF1608A0MC | 132x800x462 | 900 | |
| KF1609A0MC | 132x900x462 | 1000 | |
表格可左右移動瀏覽
| 加高四邊籃 | 碳鋼烤鐵灰 (不含滑軌/此為空籃本體實際尺寸) | ||
 |
型號 | 高x寬x深(mm) | 適用櫃體 |
| KF8560A0MC | 210x500x462 | 600 | |
| KF8570A0MC | 210x600x462 | 700 | |
| KF8580A0MC | 210x700x462 | 800 | |
| KF8590A0MC | 210x800x462 | 900 | |
| KF8599A0MC | 210x900x462 | 1000 | |
表格可左右移動瀏覽

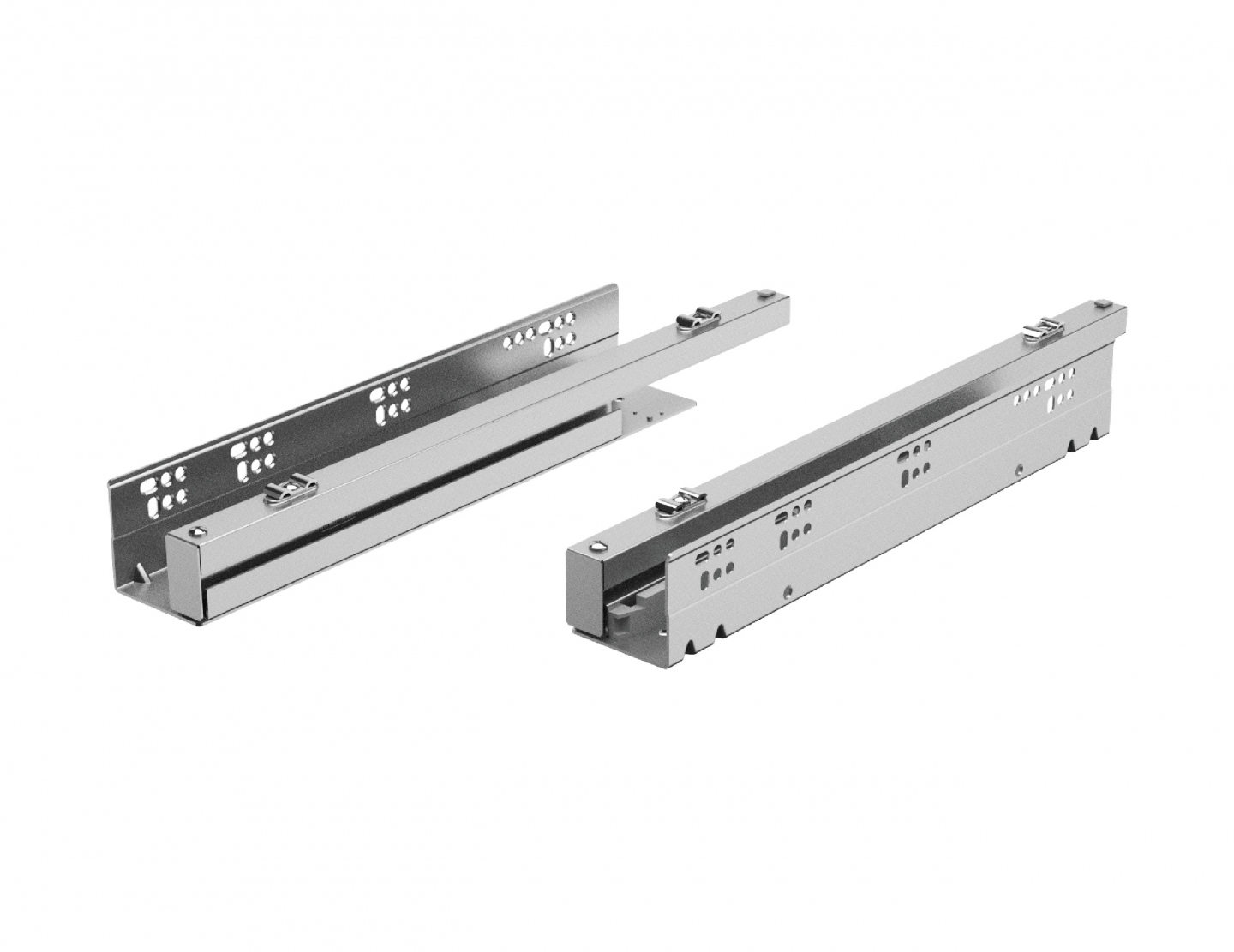

| 座式緩衝滑軌 | |||
 |
型號 | ||
| KK3901A000 | |||
