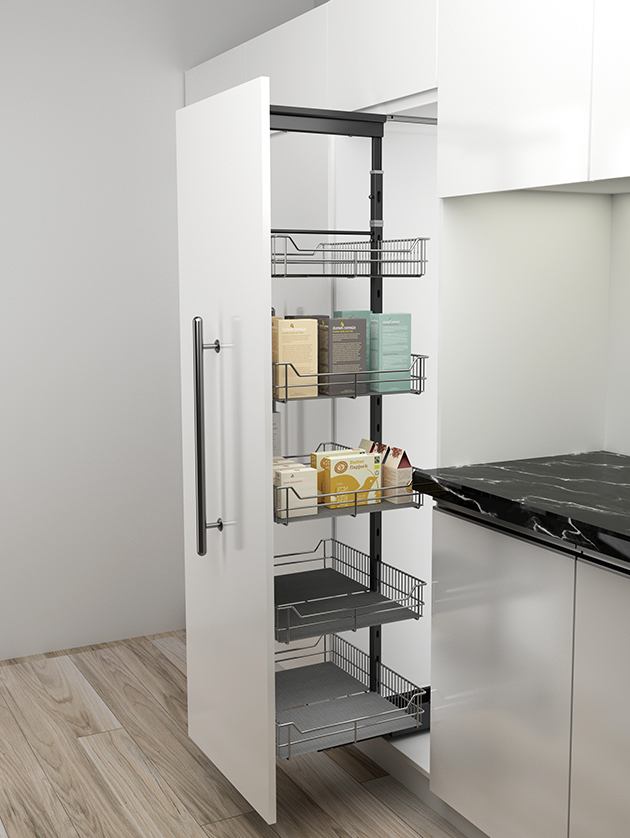

Tall Unit w/Soft-Close ∙ Heavy Duty Unit
建議載重 : 80 kg
Add to inquiry box
Production information
Description
- Anti-Slip Liner included.
- Please thicken the bottom or place extra foundation to reinforce the bottom.
- Do not install without support pillar.
- Please always put the heavy stuff on the bottom level and lighter stuff on the top.
Products Introduction
Do you face issues regarding storage in your wardrobe too?
Does the space seem too small to fit all your items?

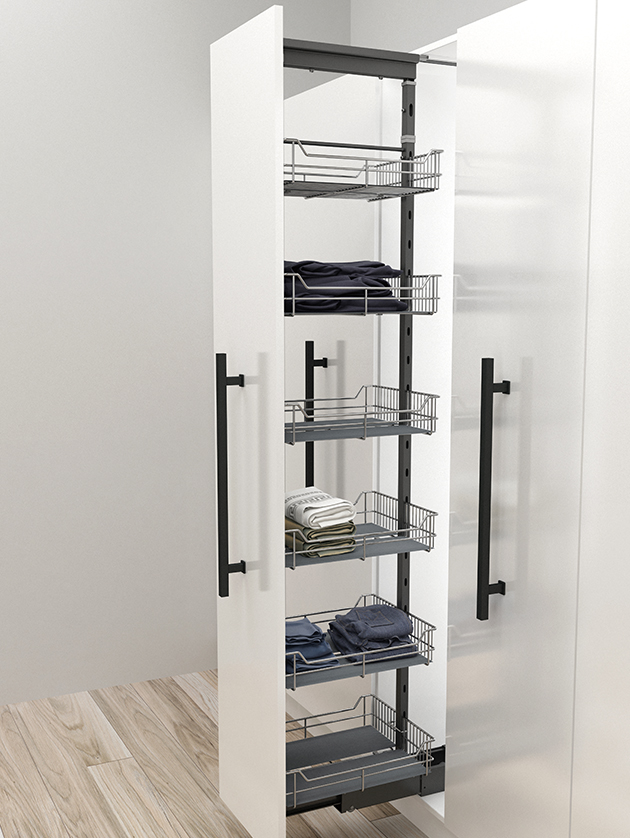

Save space with our Larder unit for the wardrobe.
It is your one stop for stocking up all and as much as you want
while keeping your wardrobe organised and clutter free.
Schematic
Product Spec.
Steel, Chrome Plated
Scroll left to find more information
| Item No | H x W x D(mm) | Cabinet Width | Component |
| HC151G1 0106H06050X3OTL |
1870~2170x443x495 | 500 | H06552A0MCx1 H01039A1QCx1 H01043A0MCx12 |
| HC161G1 0106H06060X3OTL |
1870~2170x543x495 | 600 | H06562A0MCx1 H01039A1QCx1 H01044A0MCx12 |
S.S. Chrome Plated
Scroll left to find more information
| Item No | H x W x D(mm) | Cabinet Width | Component |
| HC251G1 0106H06050X3STL |
1870~2170x443x495 | 500 | H06552A0MCx1 H01039A1QCx1 H01143A0MCx12 |
| HC261G1 0106H06060X3STL |
1870~2170x543x495 | 600 | H06562A0MCx1 H01039A1QCx1 H01144A0MCx12 |
Component
Scroll left to find more information
| Clip-on Basket (Included Anti-Slip Liner) | Steel, Chrome Plated | |||
 |
型號 | 高 x 寬x 深 (mm) | ||
| H01043A0MC | 100x222x436 | |||
| H01044A0MC | 100x277x436 | |||
Scroll left to find more information
| Clip-on Basket (Included Anti-Slip Liner) | S.S. Chrome Plated | |||
|
|
型號 | 高 x 寬x 深 (mm) | ||
| H01143A0MC | 100x222x436 | |||
| H01144A0MC | 100x277x436 | |||
Scroll left to find more information

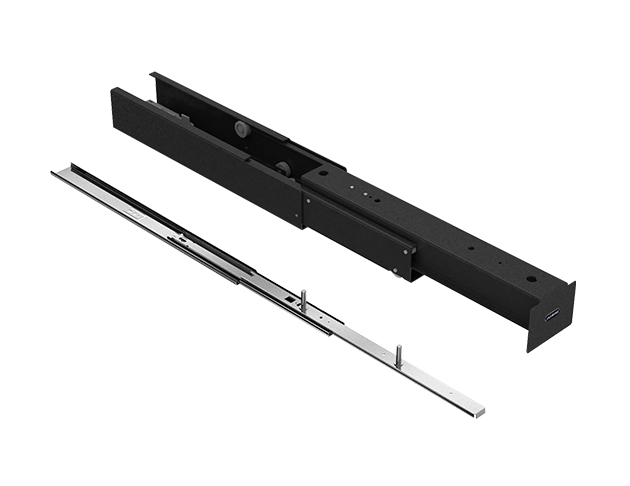

| Soft Close Heavy Runner | Steel, Gray Epoxy | |||
 |
Item No. | Length (mm) | ||
| H01039A1QC | 490 | |||
Scroll left to find more information
| Frame | Steel, Gray Epoxy | ||
 |
Item No. | H x D(mm) | Remarks |
| H06552A0MC | 1870~2170x457 | Included HW1161A0SD x2 | |
| H06562A0MC | 1870~2170x457 | Included HW1163A0SD x2 | |
Optional
Scroll left to find more information
| Door Mount Bracket | Steel, Gray Epoxy | ||
 |
Item No. | Cabinet Width | |
| HW1159A0SD | 300~400 | ||
| HW1160A0SD | 400~450 | ||
| HW1161A0SD | 500 | ||
| HW1163A0SD | 600 | ||
| The special design of door bracket helps solve the potential bending problem on the tall door panel. | |||
Scroll left to find more information

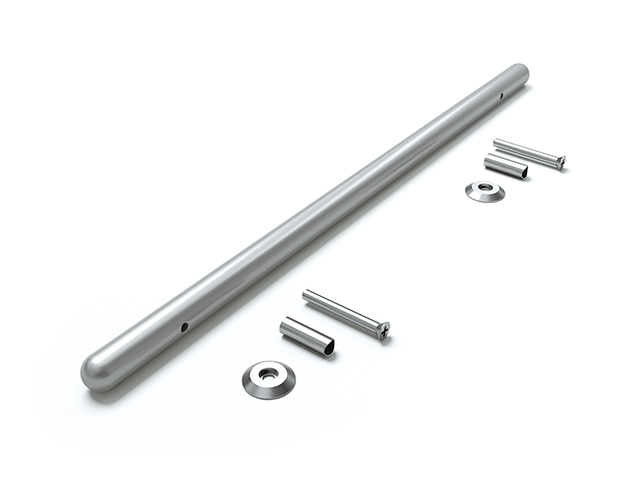

| Handle | 304 Stainless Steel | ||
 |
Item No. | Dia x H(mm) | |
| HB21 0106HB106000ST0 |
Φ25x600 | ||
| HB22 0106HB109000ST0 |
Φ25x900 | ||
Scroll left to find more information

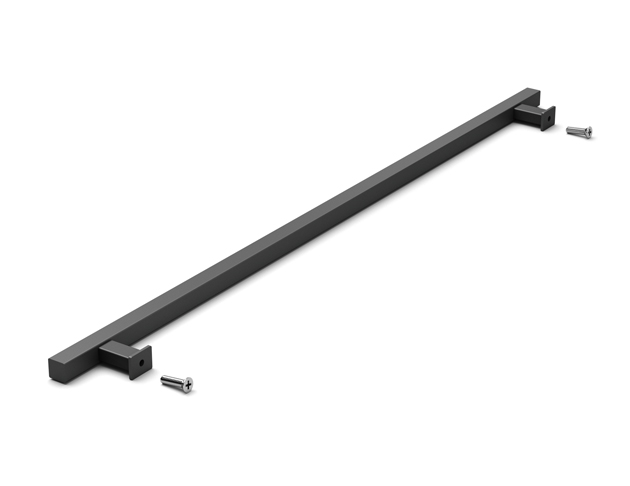

| Handle | Steel, Dark Gray Epoxy | ||
 |
Item No. | L x W x H(mm) | |
| HB106001 0106HB106000OTK |
20x20x600 | ||
| HB109001 0106HB109000OTK |
20x20x880 | ||
