Heavy Larder Unit
Load Capacity: 40kg (88lb)
Add to inquiry box
Production information
Description
- Do not install without support pillar.
- Please thicken the bottom or place extra foundation to reinforce the bottom.
- Steel, Chrome Plated / S.S. Chrome Plated
Products Introduction
The accessibility of a larder unit combined with the increased storage, makes it a strong contender for your kitchen design. Ideal to store dry goods, tins and bottles, a pull out larder unit provides great access. We offer a centre mounted pull out larder unit allowing access to either side of the baskets. Alternatively, a swing out larder is also available. Both options are supplied with either a solid or chrome mesh base.

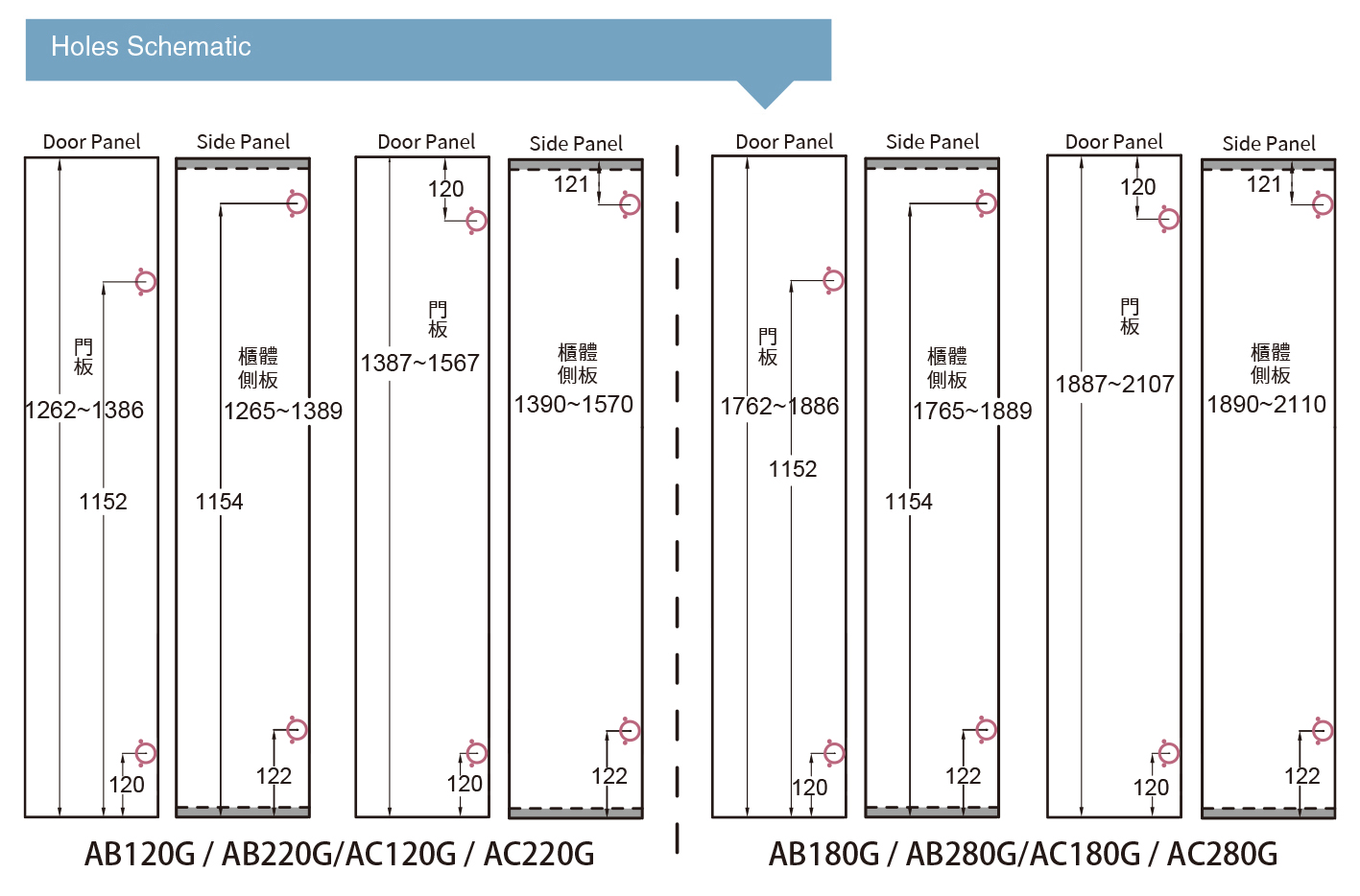

Schematic
Product Spec.
Steel, Chrome Plated
Scroll left to find more information
| Item No. | H x W x D (mm) | Cabinet Width | Component |
| AB120G2 0106AB1045X5OTL |
1265~1570x396x505 | 450 | AB1120A1MCx1 022002A0QAx3 022003A0QAx2 AB1037A0MCx5 AB1038A0MCx5 |
| AB180G2 0106AB2045X5OTL |
1765~2110x396x505 | 450 | AB1180A1MCx1 022002A0QAx4 022003A0QAx2 AB1037A0MCx6 AB1038A0MCx6 |
| AC120G2 0106AC1060X5OTL |
1265~1570x546x505 | 600 | AC1120A1MCx1 022002A0QAx4 022003A0QAx2 AC1037A0MCx5 AC1038A0MCx5 |
| AC180G2 0106AC2060X5OTL |
1765~2110x546x505 | 600 | AC1180A1MCx1 022002A0QAx4 022003A0QAx2 AC1037A0MCx6 AC1038A0MCx6 |
S.S. Chrome Plated
Scroll left to find more information
| Item No. | H x W x D (mm) | Cabinet Width | Component |
| AB220G2 0106AB1045X5STL |
1265~1570x396x505 | 450 | AB1120A1MCx1 022002A0QAx3 022003A0QAx2 AB1137A0MCx5 AB1138A0MCx5 |
| AB280G2 0106AB2045X5STL |
1765~2110x396x505 | 450 | AB1180A1MCx1 022002A0QAx4 022003A0QAx2 AB1137A0MCx6 AB1138A0MCx6 |
| AC220G2 0106AC1060X5STL |
1265~1570x546x505 | 600 | AC1120A1MCx1 022002A0QAx4 022003A0QAx2 AC1137A0MCx5 AC1138A0MCx5 |
| AC280G2 0106AC2060X5STL |
1765~2110x546x505 | 600 | AC1180A1MCx1 022002A0QAx4 022003A0QAx2 AC1137A0MCx6 AC1138A0MCx6 |
Component
Scroll left to find more information
| Clip-on Basket | ||||
 |
material | Item No. | H x W x D (mm) | |
| Steel, Chrome Plated | AB1037A0MC | 80x329x145 | ||
| Steel, Chrome Plated | AC1037A0MC | 80x479x145 | ||
| S.S. Chrome Plated | AB1137A0MC | 80x329x145 | ||
| S.S. Chrome Plated | AC1137A0MC | 80x479x145 | ||
Scroll left to find more information
| Clip-on Basket | ||||
 |
material | Item No. | H x W x D (mm) | |
| Steel, Chrome Plated | AB1038A0MC | 80x364x300 | ||
| Steel, Chrome Plated | AC1038A0MC | 80x514x300 | ||
| S.S. Chrome Plated | AB1138A0MC | 80x364x300 | ||
| S.S. Chrome Plated | AC1138A0MC | 80x514x300 | ||
Scroll left to find more information
| Frame | Steel, Gray Epoxy | |||
 |
Item No. | H x W x D (mm) | ||
| AB1120A1MC | 1265~1570x396x505 | |||
| AC1120A1MC | 1265~1570x546x505 | |||
| AB1180A1MC | 1765~2110x396x505 | |||
| AC1180A1MC | 1765~2110x546x505 | |||
Scroll left to find more information
| BLUM 170° Hinge | 1pcs | |||
 |
Item No. | |||
| 022002A0QA | ||||
Scroll left to find more information
| BLUM 170° Soft-Closing Hinge Buffer | ||||
 |
Item No. | |||
| 022003A0QA | ||||
