2-Tier Pull Out Rack w/ Wire Basket
Load Capacity : 40 kg
Add to inquiry box
Production information
Description
- Concealed Soft Closing Slide,Frame, Bottom Panel included.
- Anti-Slip Liner included.
- Door mount brackets available ( sold separately )
Products Introduction
This double pullout basket from Jasmine is perfect space-saver for storing food products and kitchen utensils.
If you have limited space in your kitchen to store your spices, bottles, jar, container or are tired of not being able to find anything in a mess of jars and bottles, Than this slide out pull-out organizer is the perfect solution for you.

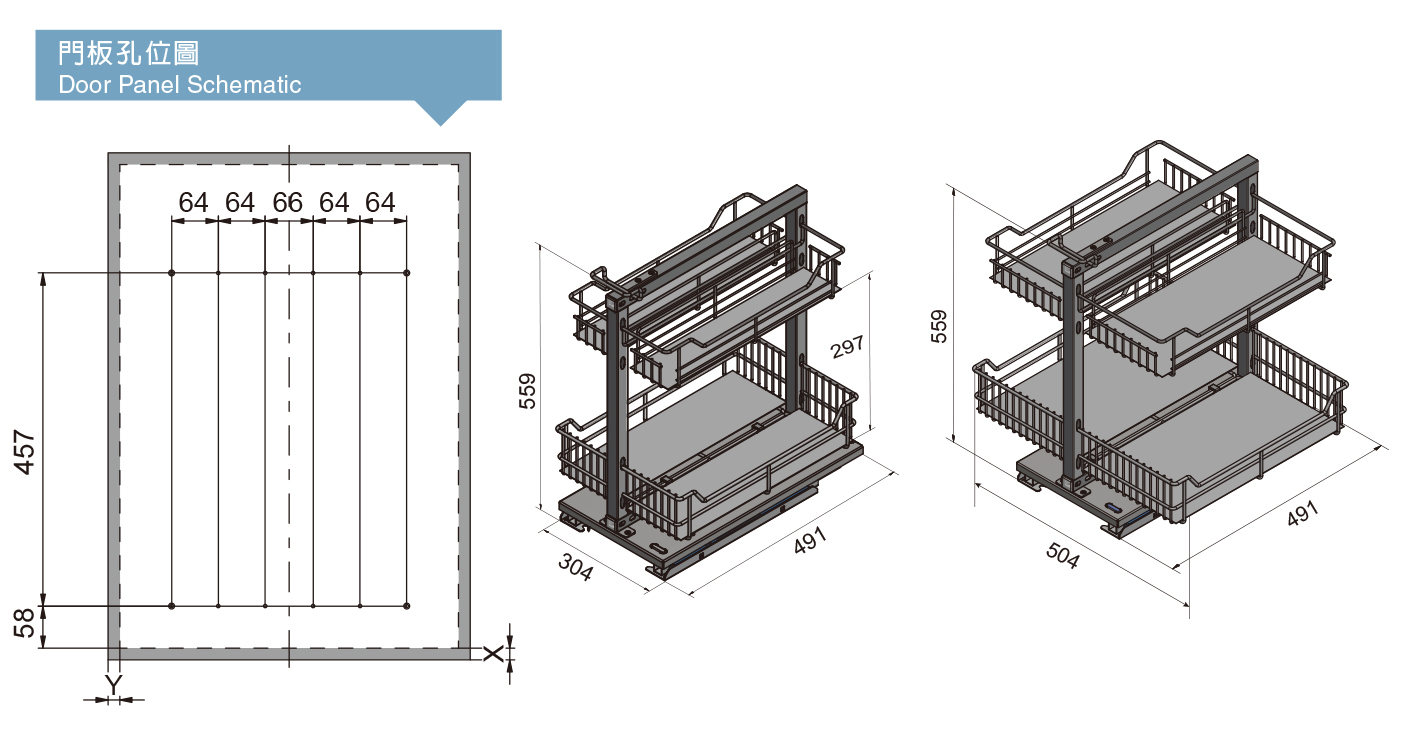

Schematic
Product Spec
Steel, Chrome Plated
Scroll left to find more information
| Item No. | H x W x D (mm) | Cabinet Width | Component |
| FI140JB 0103FI3040JDOTL |
559x304x491 | 400/450 | FI2540A0MCx1 FI2601A0MCx2 FB1201A0MCx2 FI2541A0QAx1 |
| FI150JB 0103FI3050JDOTL |
559x404x491 | 500 | FI2540A0MCx1 FI2602A0MCx2 FB1251A0MCx2 FI2541A0QAx1 |
| FI160JB 0103FI3060JDOTL |
559x504x491 | 600 | FI2540A0MCx1 FI2603A0MCx2 FB1301A0MCx2 FI2541A0QAx1 |
S.S. Chrome Plated
Scroll left to find more information
| Item No. | H x W x D (mm) | Cabinet Width | Component |
| FI240JB 0103FI3040JDSTL |
559x304x491 | 400/450 | FI2540A0MCx1 FI2701A0MCx2 FB1202A0MCx2 FI2541A0QAx1 |
| FI250JB 0103FI3050JDSTL |
559x404x491 | 500 | FI2540A0MCx1 FI2702A0MCx2 FB1252A0MCx2 FI2541A0QAx1 |
| FI260JB 0103FI3060JDSTL |
559x504x491 | 600 | FI2540A0MCx1 FI2703A0MCx2 FB1302A0MCx2 FI2541A0QAx1 |
Component
Scroll left to find more information
| Clip-on Basket | ||||
 |
Ｍaterial | Item No. | H x W x D (mm) | Cabinet Width |
| Steel, Chrome Plated | FI2601A0MC | 100x152x436 | 400/450 | |
| FI2602A0MC | 100x202x436 | 500 | ||
| FI2603A0MC | 100x252x436 | 600 | ||
| S.S. Chrome Plated |
FI2701A0MC | 100x152x436 | 400/450 | |
| FI2702A0MC | 100x202x436 | 500 | ||
| FI2703A0MC | 100x252x436 | 600 | ||
Scroll left to find more information
| Clip-on Basket | ||||
 |
Ｍaterial | Item No. | H x W x D (mm) | Cabinet Width |
| Steel, Chrome Plated | FB1201A0MC | 90x110x435 | 400/450 | |
| FB1251A0MC | 90x160x435 | 500 | ||
| FB1301A0MC | 90x210x435 | 600 | ||
| S.S. Chrome Plated | FB1202A0MC | 90x110x435 | 400/450 | |
| FB1252A0MC | 90x160x435 | 500 | ||
| FB1302A0MC | 90x210x435 | 600 | ||
Scroll left to find more information
| Steel, Chrome Plated | Steel, Chrome Plated | |||
 |
Item No. | H x W x D (mm) | ||
| FI2541A0QA | 31x94x114 | |||
Scroll left to find more information
| Frame (Concealed Soft Closing Slide,Frame, Bottom Panel included. ) | |||
 |
Item No. | ||
| FI2540A0MC | |||
Optional
Scroll left to find more information
| Door Brackets | Steel. Gray Epoxy | |||
 |
Item No. | Cabinet Width | ||
| FI2550A0SD | 400~600 | |||
Scroll left to find more information
| Divider | (Can be used for a full range of products.) | |||
 |
Item No. | H x W x D (mm) | Ｍaterial | |
| KE15 0103KE500000OTL |
110x160x120 | Steel, Chrome Plated | ||
| KE25 0103KE500000STL |
110x160x120 | S.S. Chrome Plated | ||
