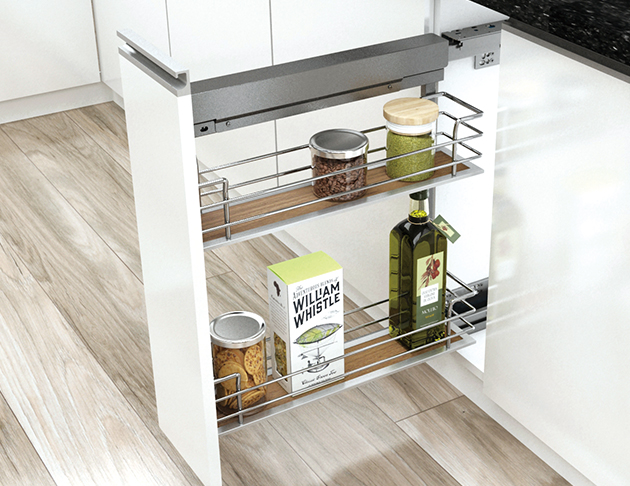

Small Side-Mounted Kit Pull Out

Load Capacity : 30 kg
Add to inquiry box
Production information
Description
  • Concealed Soft Closing Slide
  • Compact Laminate Bottom Basket / Glass-Bottom Basket
  • 200 / 300 Cabinet Width
Products Introduction

Great multipurpose storage option for tight spaces.
It could be installed both side of under the stove shelf.
Ideal for spices, bottles and other small goods.
Adopt soft-closing slide, smooth, quiet and stable.

Schematic


Steel, Chrome Plated, Compact Laminate Bottom

Scroll left to find more information

Item No. H x W x D (mm) Cabinet Width Component
FA120JWB
0103FC5020JDWO0		 586x149x484 200 FC5525A0MCx1
FLW010A1MCx2
FA130JWB
0103FC5030JDWO0		 586x249x484 300 FC5525A0MCx1
FLW015A1MCx2
S.S. Satin Nickel Plated, Tempered Glass Bottom (Be sure to inspect your product once you received it within 3 days.)

Scroll left to find more information

Item No. H x W x D (mm) Cabinet Width Component
FA720JGB
0103FC5020JDGLP		 586x149x484 200 FC5525A0MCx1
FLW110A1MCx2
FA730JGB
0103FC5030JDGLP		 586x249x484 300 FC5525A0MCx1
FLW115A1MCx2

Scroll left to find more information

Compact Laminate Bottom Basket Steel, Chrome Plated, Compact Laminate Bottom
Item No. H x W x D (mm) Cabinet Width
FLW010A1MC 101x110x482 200
FLW015A1MC 101x210x482 300

Scroll left to find more information

Glass-Bottom Basket S.S. Satin Nickel Plated, Tempered Glass Bottom
Item No. H x W x D (mm) Cabinet Width
FLW110A1MC 101x110x482 200
FLW115A1MC 101x210x482 300

Scroll left to find more information

Frame (Universal)     Concealed Soft Closing Slide Included
Item No.
FC5525A0MC

Scroll left to find more information

Divider (can be used for a full range of products.)
Item No. H x W x D (mm) Material
KE15
0103KE500000OTL		 110x160x120 Steel, Chrome Plated
KE25
0103KE500000STL		 110x160x120 S.S. Chrome Plated
