• 4-Sided Pull-out Basket w/ Soft Closing Ball-Bearing Slide 1
  • 4-Sided Pull-out Basket w/ Soft Closing Ball-Bearing Slide 2
  • 4-Sided Pull-out Basket w/ Soft Closing Ball-Bearing Slide
  • 4-Sided Pull-out Basket w/ Soft Closing Ball-Bearing Slide

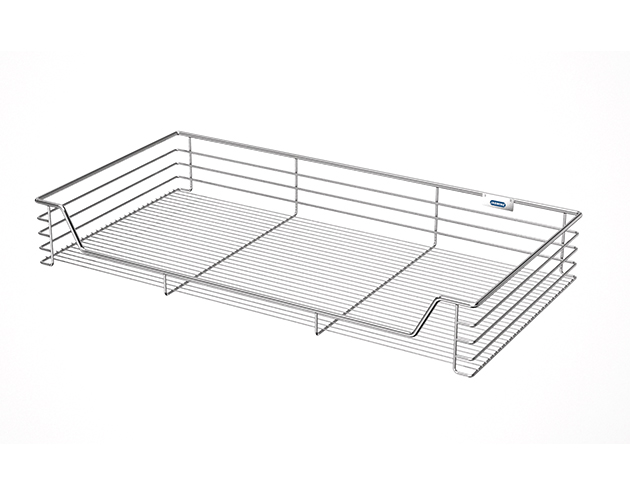

4-Sided Pull-out Basket w/ Soft Closing Ball-Bearing Slide

Load Capacity : 20 kg
Add to inquiry box
Production information
Description
  • Soft Closing Ball-Bearing Slide
  • Steel, Chrome Plated / S.S. Chrome Plated
Products Introduction

The beauty of pull-out wire basket is that you see what's inside.
Ideal for storing thing like pots, pan and containers.

Schematic


Steel, Chrome Plated

Scroll left to find more information

Item No. H x W x D (mm) Cabinet Width Component
5400G2
0103KF1040GCOTL		 139x364x462 400 KF1900A100x1
KF1502A0MCx1
5500G2
0103KF1050GCOTL		 139x464x462 500 KF1900A100x1
KF1504A0MCx1
5600G2
0103KF1060GCOTL		 139x564x462 600 KF1900A100x1
KF1505A0MCx1
5720G2
0103KF1072GCOTL		 139x684x462 720 KF1900A100x1
KF1507A0MCx1
5800G2
0103KF1080GCOTL		 139x764x462 800 KF1900A100x1
KF1501A0MCx1
5900G2
0103KF1090GCOTL		 139x864x462 900 KF1900A100x1
KF1508A0MCx1
S.S. Chrome Plated

Scroll left to find more information

Item No. H x W x D (mm) Cabinet Width Component
5400SG2
0103KF1040GCSTL		 138x364x461 400 KF1900A100x1
KF1512A0MCx1
5500SG2
0103KF1050GCSTL		 138x464x461 500 KF1900A100x1
KF1514A0MCx1
5600SG2
0103KF1060GCSTL		 138x564x461 600 KF1900A100x1
KF1515A0MCx1
5720SG2
0103KF1072GCSTL		 138x684x461 720 KF1900A100x1
KF1517A0MCx1
5800SG2
0103KF1080GCSTL		 138x764x461 800 KF1900A100x1
KF1511A0MCx1
5900SG2
0103KF1090GCSTL		 138x864x461 900 KF1900A100x1
KF1518A0MCx1

Scroll left to find more information

4-Sided Basket Steel, Chrome Plated  Product Dimension ( Basket Only )
Item No. H x W x D (mm) Cabinet Width
KF1502A0MC 132x300x462 400
KF1504A0MC 132x400x462 500
KF1505A0MC 132x500x462 600
KF1507A0MC 132x620x462 720
KF1501A0MC 132x700x462 800
KF1508A0MC 132x800x462 900

Scroll left to find more information

4-Sided Basket S.S. Chrome Plated  Product Dimension ( Basket Only )
Item No. H x W x D (mm) Cabinet Width
KF1512A0MC 131x300x461 400
KF1514A0MC 131x400x461 500
KF1515A0MC 131x500x461 600
KF1517A0MC 131x620x461 720
KF1511A0MC 131x700x461 800
KF1518A0MC 131x800x461 900

Scroll left to find more information

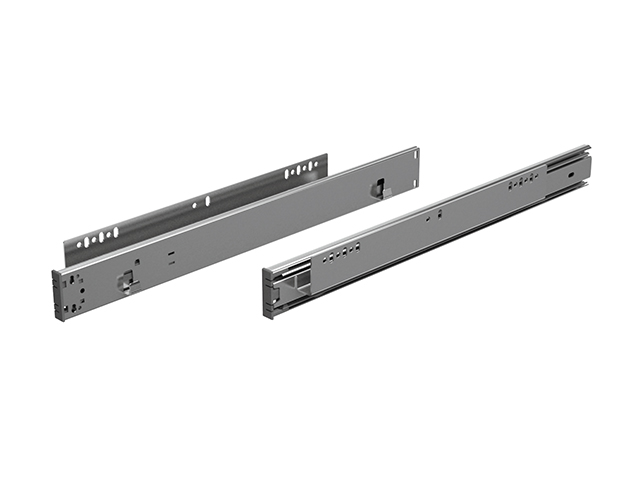

Soft Closing Ball-Bearing Slide
Item No.
KF1900A100

Scroll left to find more information

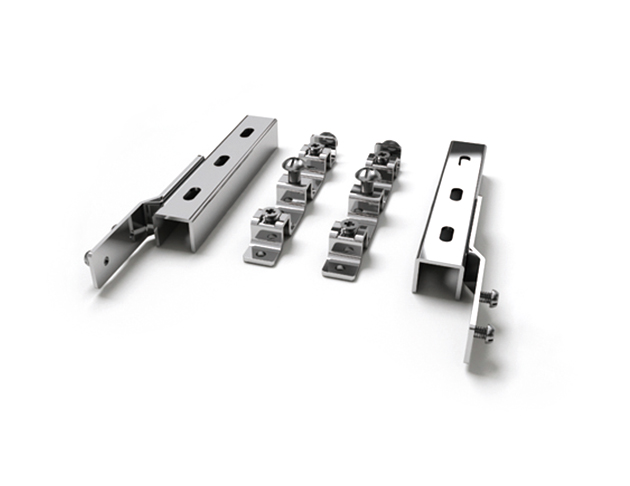

Door Mounting Brackets
Item No.
KF1800A0SD
